JX2212 过压保护芯片
产品介绍
The JX2212 is an Over-Voltage-Protection (OVP) and Over-Current-Protection (OCP) IC with adjustable OCP thresholds current.
It can disconnect IN and OUT to protect load when wrong input operating conditions are detected. The maximum operation voltage and current of JX2212 are 36V and 2A.
The internal default over-voltage thresholds is 6.1V .
乐发ⅡThe maximum operation current of JX2212 is 2A, over current protection will be triggered if operation current is large than 2.3A with ISET pin floating, and the OCP current decreases if Rset is defined, as the value of Rset increases,the OCP current decreases.
乐发ⅡJX2212 also has internal over temperature protection (OTP) function, it can monitor chip temperature to protect the device.
产品特点
乐发ⅡTypical RON: 130mΩ N-Channel MOSFET @5V/1A
Maximum Output Current: 2A.
乐发ⅡMaximum input voltage: 36V
乐发ⅡInternal Over-voltage Lockout : 6.1V ±3% accuracy
乐发ⅡInternal Over-current Lockout : 2.3A (Typ.) (ISET pin Floating)
Adjustable OCP threshold current: OCP adjustment range: 700mA~2.3A
乐发ⅡInternal Thermal-Shutdown Protection
ESD Protected: Human Body Model： JESD22-A114(All pins)±2KV
SOT23-6L、DFN2×2-8L
产品应用
全球定位系统
个人多媒体系统
乐发ⅡTWS耳机充电盒
平板电脑
数码相机
网络摄像机

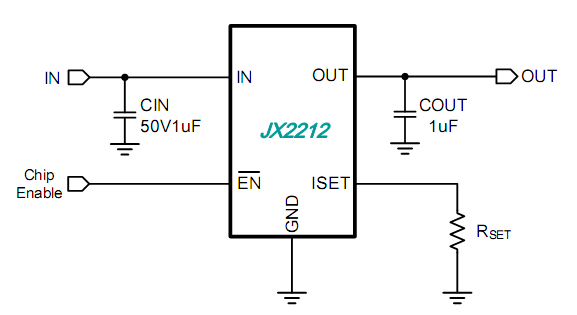

应用电路图原理

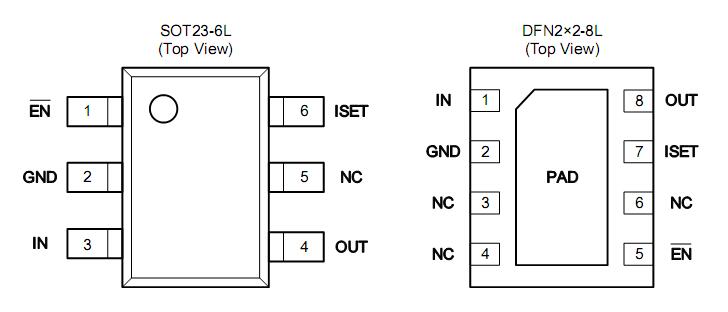

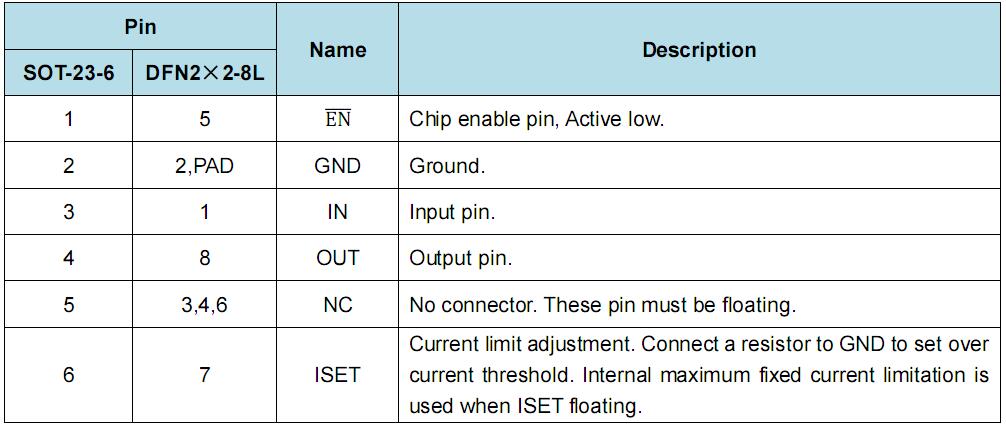

引脚定义及功能详解
乐发ⅡNote: RSET=100K, IOCP_MIN=1.1A
